PRODUCTS
Pliers
PLEASE CONTACT US BEFORE PLACING INTERNATIONAL
ORDERS SO WE CAN QUOTE YOU SHIPPING COSTS.
ITEM # 25 02 160  $21.99

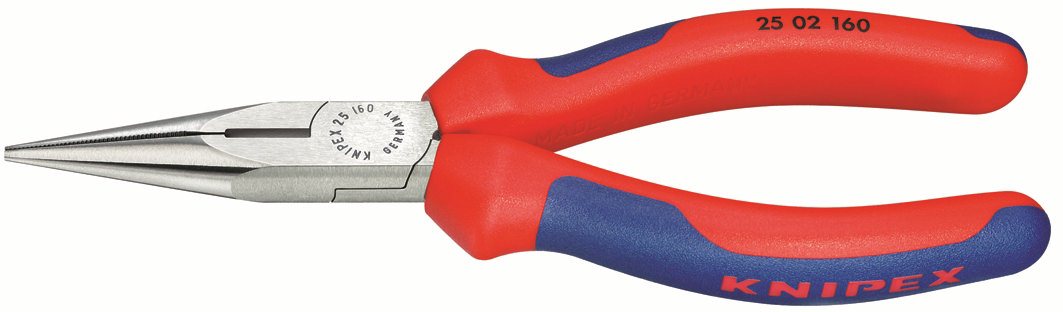

Chain Nose Side Cutting Pliers
■suitable for gripping and cutting work in
precision mechanics
■pointed, half-round jaws
■serrated gripping surfaces
■with cutting edges for soft, medium-hard and
hard wire
■cutting edges additionally induction hardened,
cutting edge hardness approx. 61 HRC
■Vanadium electric steel; forged, oil-hardened

Length: 160mm (6.3")
Weight: 144g (.32 lb)
Max cutting capacity:
*medium wire 2.5mm (.09")
*hard wire 1.6mm (.06")
Finish: Polished head with
multi-component grips
ITEM # 26 12 200  $24.99

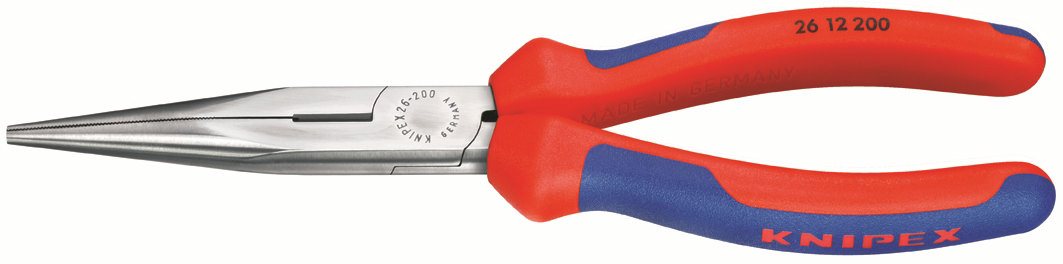

Chain Nose Side Cutting Pliers
■distortion-tolerant, elastic precision tips
■half-round, long, pointed jaws
■with cutting edges (hardness approx. 61 HRC) for
soft, medium-hard and hard wire
■Vanadium electric steel; forged, oil-hardened

Length: 200mm (7.87")
Weight: 201g (.44 lb)
Max cutting capacity:
*medium wire 3.2mm (.126")
*hard wire 2.2mm (.087")
Finish: Polished head with
multi-component grips

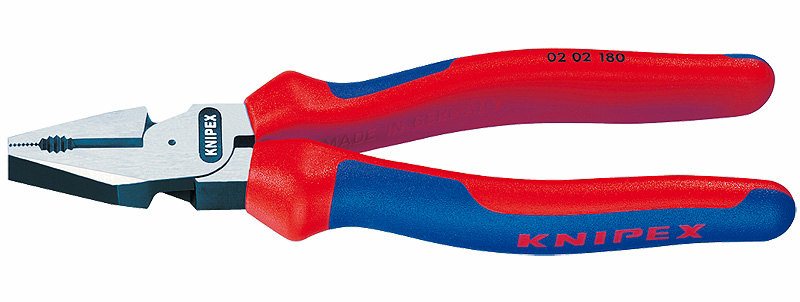

High Leverage Combination Pliers
■35 % less effort required than with conventional
combination pliers
■easier work due to optimised leverage
■with cutting edges (hardness approx. 63 HRC) for soft
and hard wire and piano wire
■long cutting edges for thicker cables
■with gripping zones for flat and round material, suitable
for versatile use
■High-grade special tool steel, forged, oil-hardened

Length: 180mm (7.09")
Weight: 240g (.53 lb)
Max cutting capacity:
*cable - Al + Cu 11.5mm (.45")
*hard wire 2.5mm (.098")
*piano wire 2mm (.079")
Finish: Black atramentized
polished head
with multi-component grips
ITEM # 02 02 180  $20.99

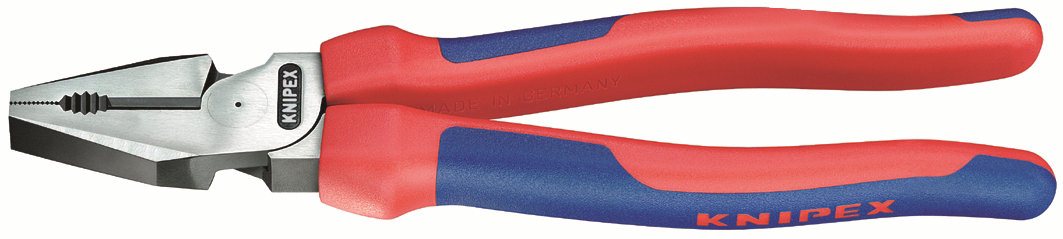

High Leverage Combination Pliers
■35 % less effort required than with conventional
combination pliers
■easier work due to optimised leverage
■with cutting edges (hardness approx. 63 HRC) for soft
and hard wire and piano wire
■long cutting edges for thicker cables
■with gripping zones for flat and round material, suitable
for versatile use
■High-grade special tool steel, forged, oil-hardened

Length: 200mm (7.87")
Weight: 342g (.75 lb)
Max cutting capacity:
*cable - Al + Cu 13mm (.51")
*hard wire 2.8mm (.11")
*piano wire 2.2mm (.087")
Finish: Black atramentized
polished head
with multi-component grips
ITEM # 02 02 200  $21.99

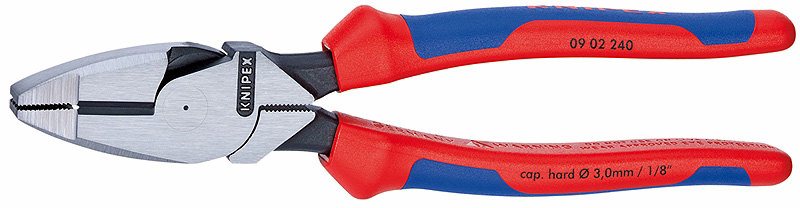

Lineman’s Pliers
■solid construction for heaviest strain; universally applicable
■high transmission ratio for easy cutting
■requires 40% less effort compared with conventional
combination pliers thanks to optimised transmission ratio
■ergonomically optimized handle shape for firm contact to
the hand and fatigue reducing operation
■particularly effective crosswise serrated gripping zone in
the jaws - for strong gripping and pulling
■additional gripping zone below the articulated joint for
powerful leverage and pressing performance
■with cutting edges for soft and hard wire
■cutting edges additionally induction hardened, cutting
edge hardness approx. 64 HRC
■Vanadium electric steel; forged, oil-hardened

Length: 240mm (9.45")
Weight: 470g (1.04 lb)
Max cutting capacity:
*medium wire 4.6mm (.18")
*hard wire 3mm (.11")
Finish: Black atramentized
polished head
with multi-component grips
ITEM # 09 02 240  $37.99

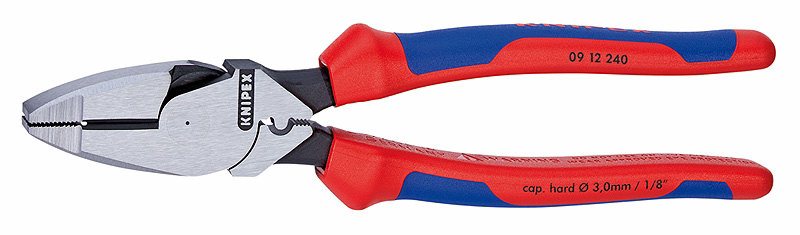

Lineman’s Pliers
■solid construction for heaviest strain; universally
applicable
■high transmission ratio for easy cutting
■requires 40% less effort compared with conventional
combination pliers thanks to optimised transmission ratio
■ergonomically optimized handle shape for firm contact to
the hand and fatigue reducing operation
■particularly effective crosswise serrated gripping zone in
the jaws - for strong gripping and pulling
■additional gripping zone below the articulated joint for
powerful leverage and pressing performance
■with cutting edges for soft and hard wire
■cutting edges additionally induction hardened, cutting
edge hardness approx. 64 HRC
■Vanadium electric steel; forged, oil-hardened
■with cable puller in the joint gap
■with universal mandrel crimping point under the joint

Length: 240mm (9.45")
Weight: 470g (1.04 lb)
Max cutting capacity:
*medium wire 4.6mm (.18")
*hard wire 3mm (.11")
Finish: Black atramentized
polished head
with multi-component grips
ITEM # 09 12 240  $42.99
